2x - Gridfinity upgrade for Bow Xtender and DIY tablesaw fence - 3D files

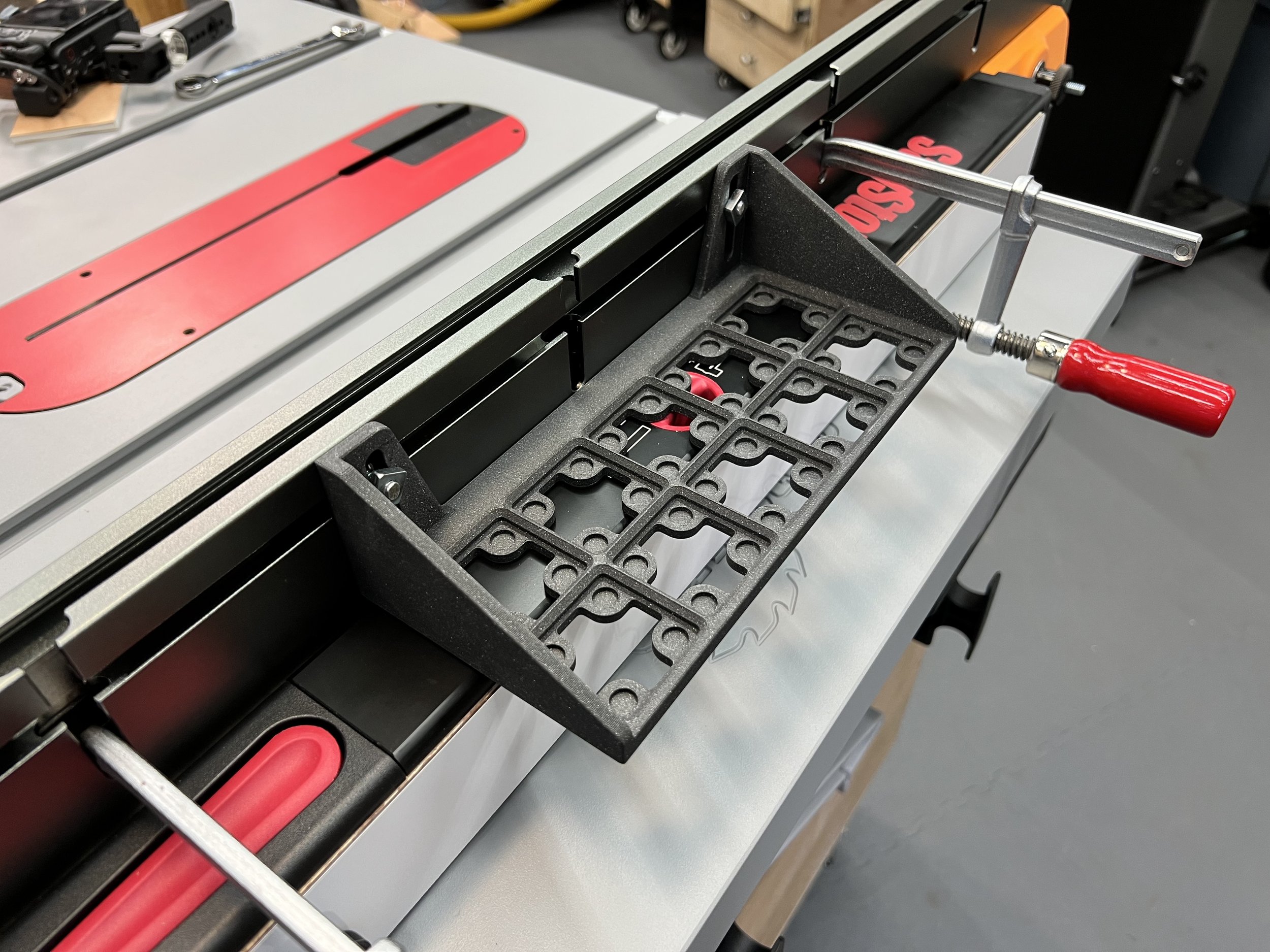

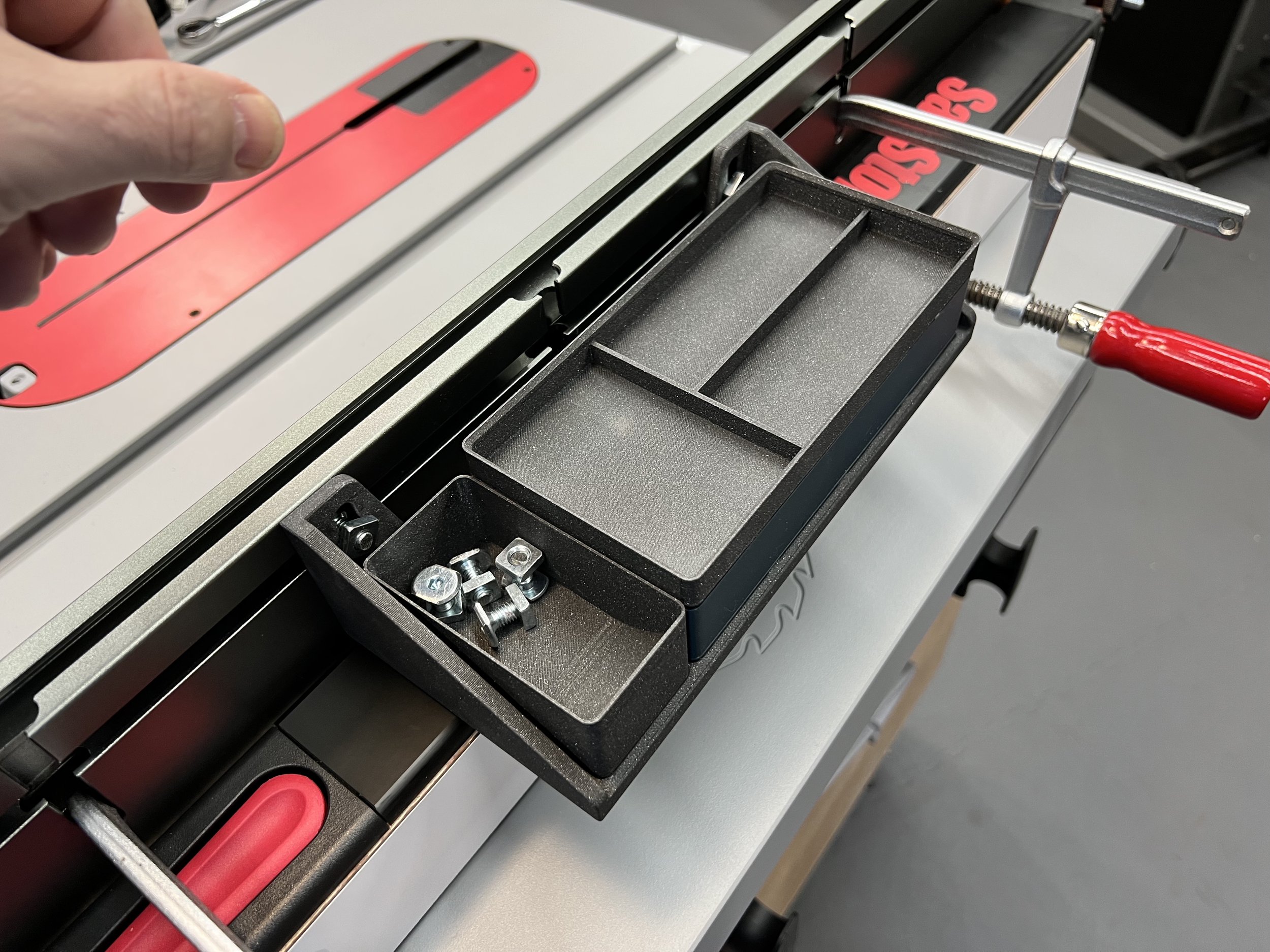

This is a set of 2X gridfinity shelves for mounting to the rear of the Bow Xtender Fence. They are based on the Gridfinity standard and include magnet slots, should you want to use them. You can then create your own Gridfinity tray designs online, with no 3D modelling software to install. Here is the link: https://gridfinitygenerator.com. You can also download existing gridfinity trays from Printables.
STL files

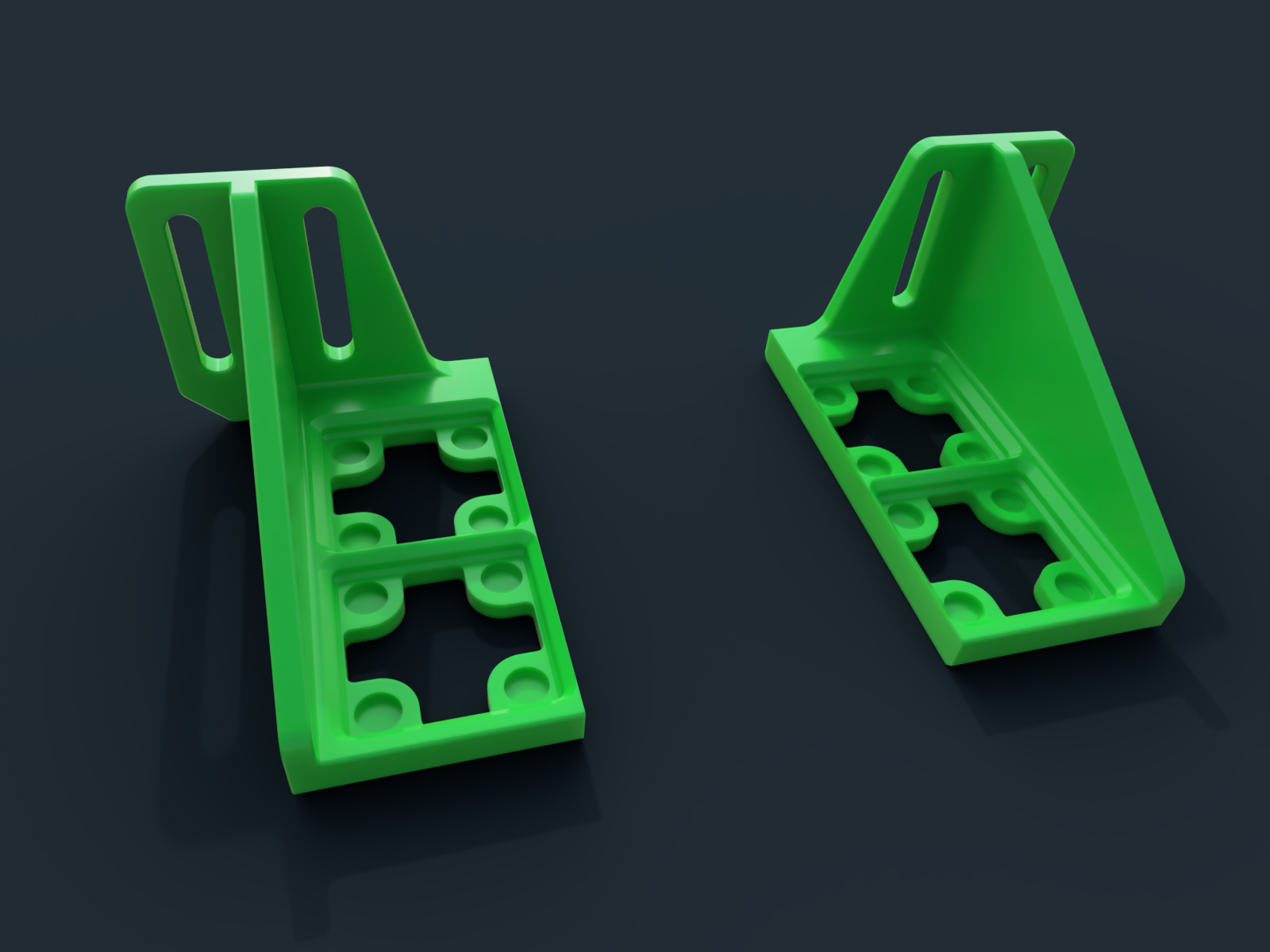

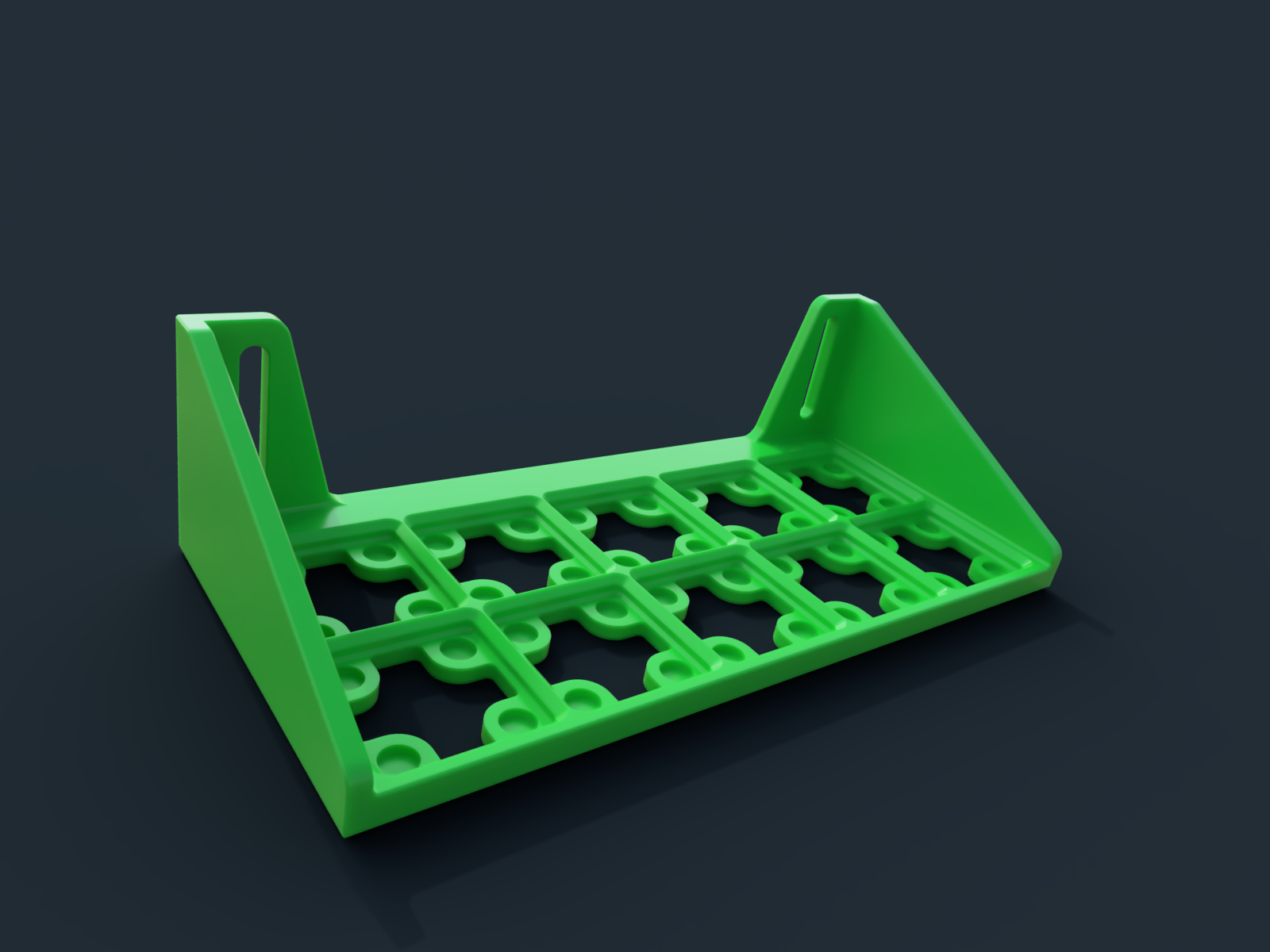

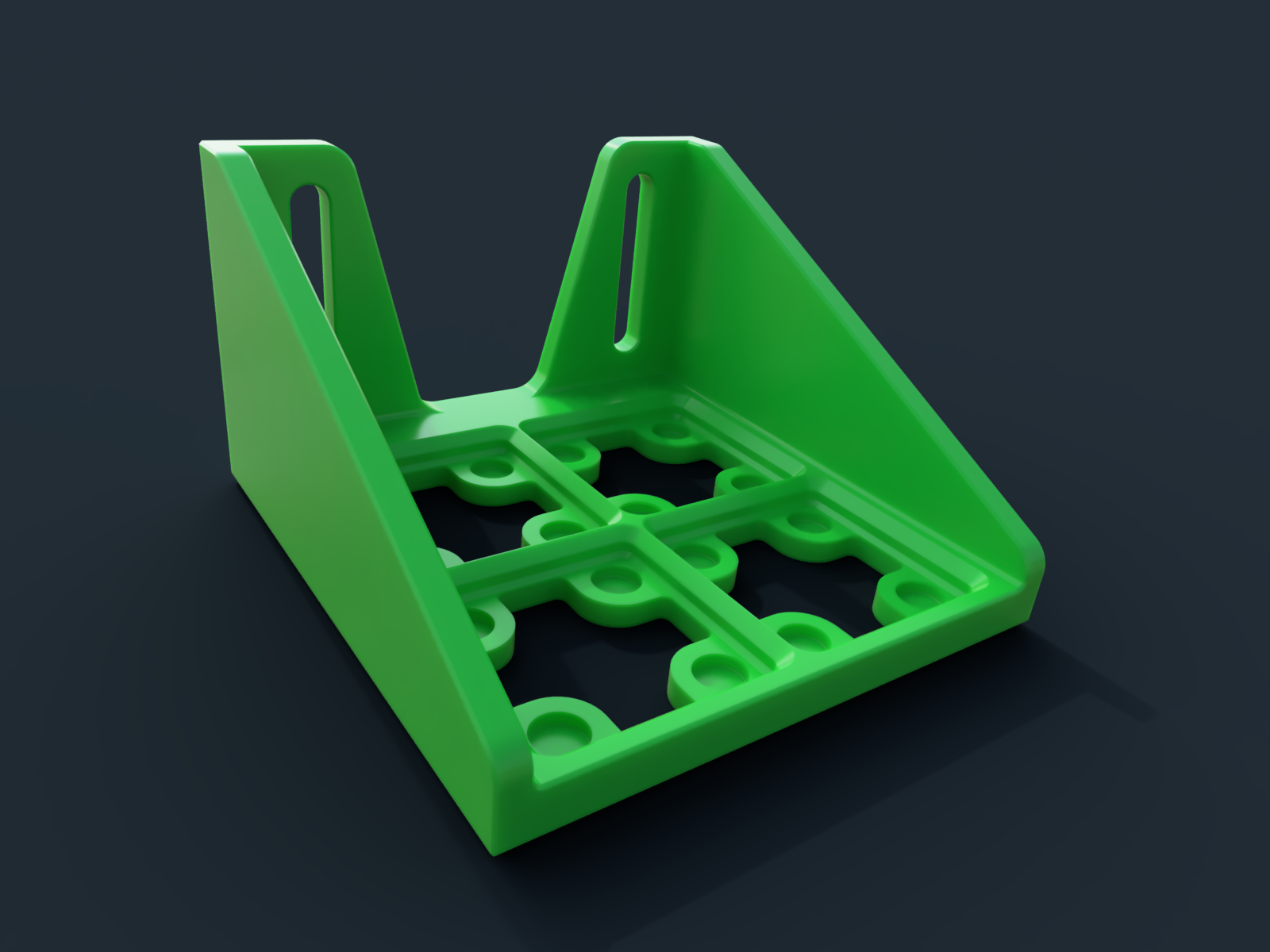

This set of STL’s comes in 2x1, 2×2, 2×3, 2×4, 2×5. it also includes a left and right variable mount, so if your printer can handle large sizes you can use these variable shelf supports. The largest fits on common printer bed sizes, like the Prusa MK4s and the Bambu labs A1, P1S, and X1C. No supports required to print.
There is also a set in the shop, configured at 1x, so 1×2, 1×3, 1×4, 1×5, and the variable left and right mounts.
Mounting to the fence requires 2 x M6 or ¼” T-bolts by 12mm long (½”) and 2 x thin square nuts.
If you can’t find short enough T-Bolts then you can cut them to length. Alternatively if the square nuts are large enough to act as the T-bolt you can use them in the slot and then use pan head bolts that are 12mm (½”) long, much easier to find. If you are using the variable mounts then you will need to double the bolts and nuts.
T-Bolts
UK M6 T-bolts: https://amzn.to/3Q0i1Oj
USA ¼” T-Bolts: https://amzn.to/4gwk4nL
Nuts
UK M6 nuts: https://amzn.to/4jJIP2U
USA ¼” nut: https://amzn.to/4aItFXy
Alternative: Pan Head bolts - m6 (1/4”) - 12mm (½”) long
UK Pan head bolts: https://amzn.to/4hBJyln
USA Pan head bolts: https://amzn.to/4hs6djN
Magnets 8mm x 2mm
UK: https://amzn.to/3Q4ywsI
USA: https://amzn.to/4hlP3En
